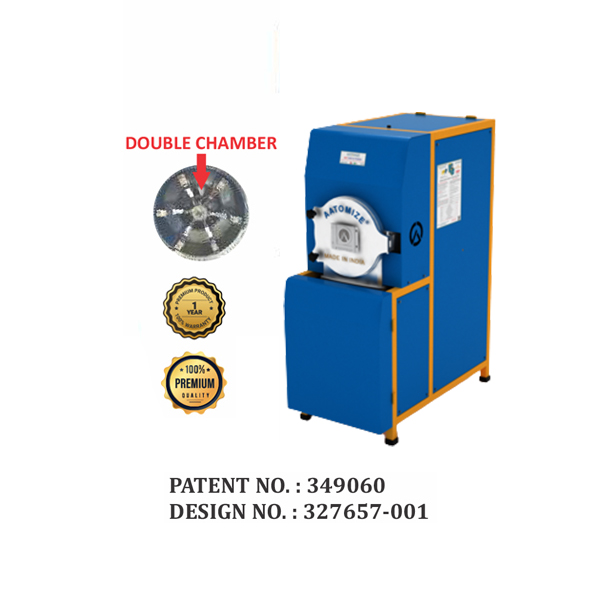

CRETA POWER DOUBLE CHAMBER
| MODEL NAME | 3 HP | 5 HP |
|---|---|---|
| MODEL NO. | AZ303A | AZ502A |
| Grinding Capacity | 25 to 40 kg | 40 to 60 kg |
| Automation Grade | Automatic | Automatic |
| Material | MS Body | MS Body |
| Power Source | Electric | Electric |
| Voltage (V) | 415 | 415 |
| Current (A) | 4.5 | 7.5 |
| Corrosion Resistance | Yes | Yes |
| Power Consumption | 2.50 KWH | 4.00 KWH |
| Motor Speed | 2880 rpm | 2880 rpm |
| Frequency (HZ) | 50 | 50 |
| Motor Type | Three Phase | Three Phase |
| Coating | Powder Coating | Powder Coating |
| Chamber | Double Chamber | Double Chamber |
| Machine Dimension Inch | L-32″ W-17″ H-46″ | L-36″ W-19″ H-49.5″ |
| Chamber Dimension Inch | 10″ Dia x 6.5″ Depth | 12″ Dia x 6.5″ Depth |
| Back Chamber Dimension Inch | 6″ Dia x 4″ Depth | 6.5″ Dia x 4″ Depth |
